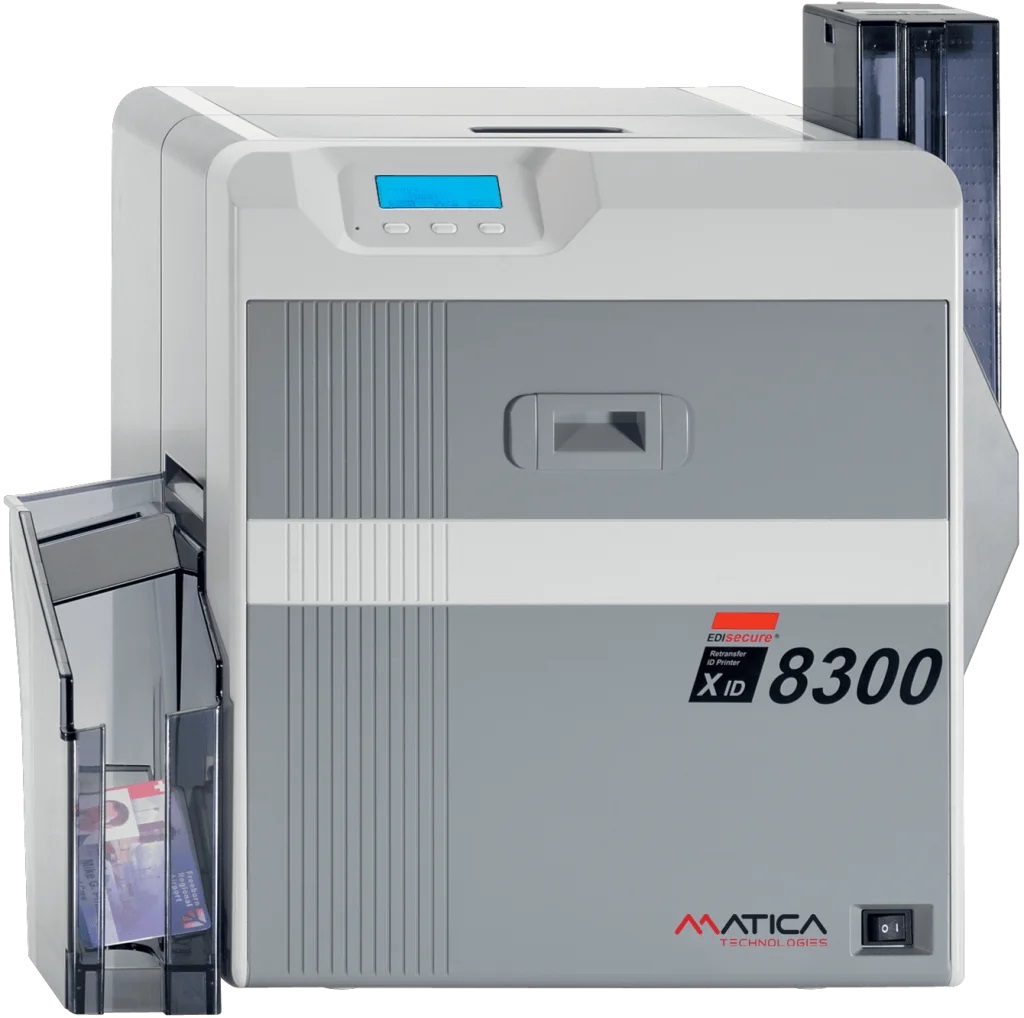

The Matica XID8300 is a versatile retransfer card printer designed to deliver outstanding print quality, reliability, and flexibility for professional card issuance programs.
The Matica XID8300 uses retransfer printing technology to produce vibrant, edge-to-edge card personalization with exceptional consistency. Designed for medium- to high-volume card issuance environments, it is ideal for corporate badges, access control cards, student IDs, and other secure credential applications.
🛡️Key Product Features
- Retransfer printing for true edge-to-edge results
- 300 dpi print resolution
- Up to 120 full-colour cards per hour
- Available in single-sided or dual-sided configurations
- Compatible with PVC, ABS, PET and polycarbonate cards
- 200-card input hopper
- USB 2.0 and Ethernet connectivity
- High-capacity ribbons with up to 1000 prints
- 3-year warranty and lifetime printhead warranty*
🚀 Performance and Efficiency
The XID8300 delivers clear and consistent printing across a wide range of card technologies and materials. Retransfer technology allows excellent image quality on contact and contactless smart cards while maintaining durability and professional appearance.
Its proven print engine and high-capacity consumables make it a dependable solution for organizations producing identification cards on a regular basis.
đź”’ Security and Compliance
Available security-focused features include:
- UV security printing
- Contact and contactless smart card encoding
- IPSEC support for encrypted data transfer
- Magnetic stripe encoding options
- Kensington lock support for physical device security
⚙️ Integration and Customization
Available options include:
- Dual-sided printing
- Single-sided or dual-sided inline lamination modules
- ISO 7816-2 smart card support
- ISO 14443 A/B and ISO 15693 technologies
- MIFARE®, DESFire® and HID iClass® support
- Ethernet networking for enterprise deployment
đź“‹ Technical Specifications
- Print Technology: Dye-sublimation retransfer
- Resolution: 300 dpi
- Speed: Up to 120 colour cards per hour
- Print Modes: Single-sided or dual-sided
- Card Format: ISO CR80
- Input Capacity: 200 cards
- Output Capacity: 100 cards
- Card Thickness: 0.25 mm to 1.02 mm
- Card Types: PVC, Composite PVC, ABS, PET and Polycarbonate
- Connectivity: USB 2.0, Ethernet
- Dimensions: 343 Ă— 322 Ă— 360 mm
- Weight: 13.9 kg
- Operating Systems: Windows 10, Windows 11, Server 2016, 2019, 2022
- Certifications: RoHS, CE, FCC, UL, WEEE, RED and others
âś… User Benefits
- Professional edge-to-edge card printing
- Supports modern smart card technologies
- Scalable through lamination and encoding options
- Reduced operating costs with high-yield consumables
- Proven reliability for institutional ID programs
- Ideal for education, corporate, and access control applications
Printhead warranty is subject to manufacturer consumable requirements.
Feel free to contact us if you need more information or a quote.
