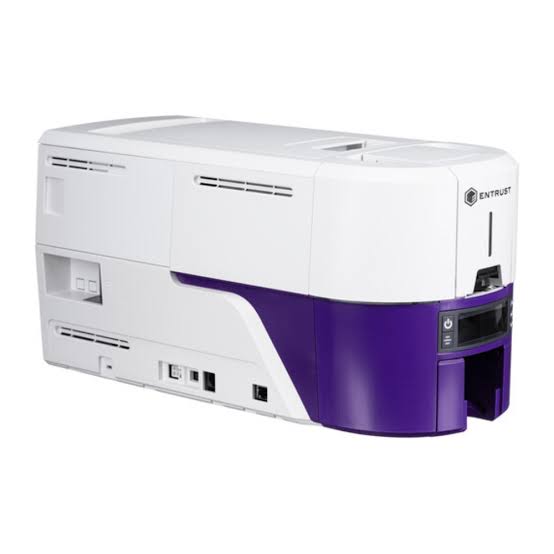

Datacard DS2DS – Secure Dual-Sided ID Card Printer

The Datacard DS2DS delivers secure, easy-to-manage dual-sided card printing for modern identity programs. Designed for connected environments, it combines advanced security, intuitive management, and flexible credential issuance capabilities.
The Datacard DS2DS enables organizations to produce employee badges, student IDs, membership cards, and access credentials efficiently while protecting sensitive cardholder information through multiple layers of security.

🛡️ Key Product Features

• Dual-sided colour and monochrome printing
• Resolution up to 300 x 1200 dpi
• Up to 250 colour cards per hour
• Mobile-accessible printer dashboard
• Cloud or on-premises deployment
• Easy ribbon replacement with preloaded cartridges
• Standard USB and Ethernet connectivity
• Support for physical cards and FlashPass® digital credentials

🔒 Security and Compliance

Advanced security technologies include:

• Secure boot protection
• Trusted Platform Module (TPM)
• Encrypted communications
• Encrypted cardholder data
• No retention of customer data after printing
• Security print enhancements to help deter tampering and counterfeiting

🚀 Performance and Efficiency

The Datacard DS2DS is designed to maximize productivity:

• Intuitive printer dashboard
• QR-code access to support resources
• Easy ribbon replacement
• Simplified firmware updates
• Up to 250 single-sided colour cards per hour
• Customizable LED light ring

⚙️ Compatibility and Integration

Available options include:

• ISO 7811 magnetic stripe encoding
• ISO 7816 contact smart cards
• ISO 14443 A/B and ISO 15693 contactless cards
• MIFARE®, MIFARE DESFire®, HID Prox®, iCLASS®, iCLASS SE®, iCLASS Seos®, and FeliCa® compatibility
• Optional Wi‑Fi 802.11g/n
• Mobile printing support for iOS, Android, and Windows devices

📋 Technical Specifications

• Print Technology: Direct-to-card dye sublimation
• Print Mode : Dual-sided
• Resolution : 300 dpi (300 × 600 and 300 × 1200)
• Colour Print Speed : Up to 250 cards/hour
• Dual-Sided Colour Speed : Up to 140 cards/hour
• Input Hopper : 125 cards
• Output Hopper : 25 cards
• Card Formats : CR-80, CR‑79
• Card Thickness : 0.25 mm to 1.016 mm
• Connectivity : USB and Ethernet, Wi‑Fi en option
• Dimensions : 44.2 × 22.6 × 22.9 cm
• Weight : 5.49 kg
• Warranty : 36 months

✅ User Benefits

• Fast professional ID card production
• Modern and intuitive user experience
• Advanced protection for sensitive information
• Broad smart card compatibility
• Easy deployment and administration
• Scalable platform for evolving credential programs

Encoding, Wi‑Fi, and advanced feature availability may vary based on the selected configuration.

Feel free to contact us if you need more information or a quote.
